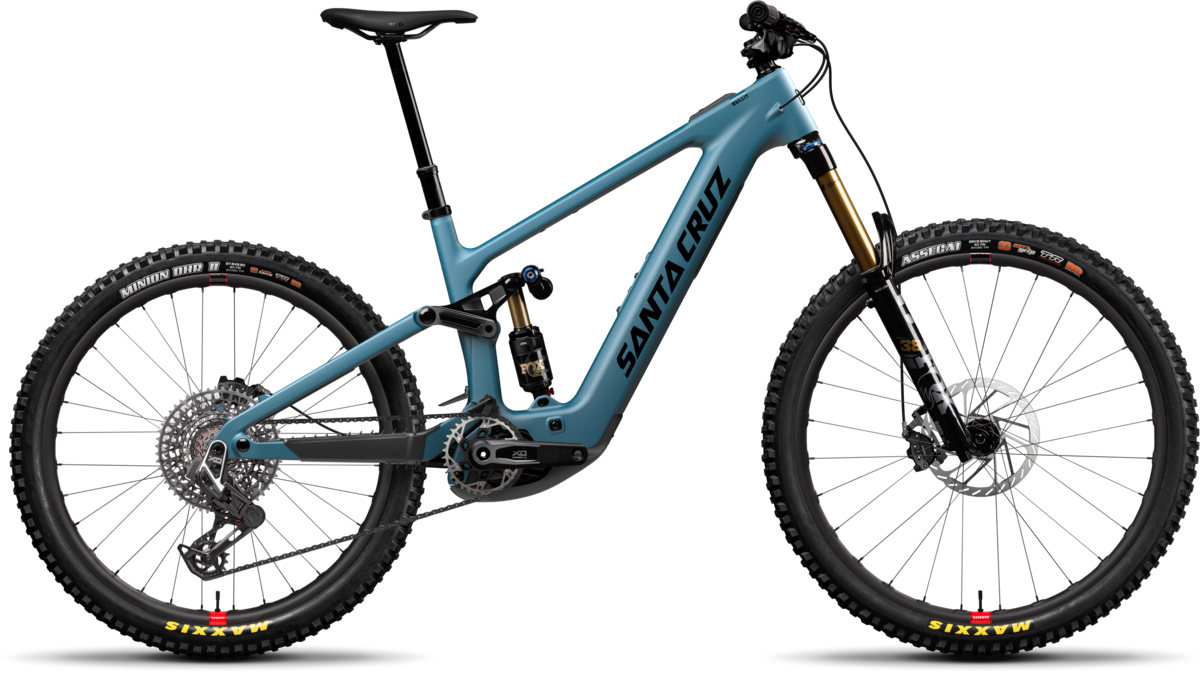

Santa Cruz Bullit 4 CC MX X0 AXS RSV
Details
If you feel the pull of gravity riding but want an extra push to get to the top, the Bullit is for you. Specifically designed to excel on the toughest terrain, it features an electric motor to get you to the drop-in of the wildest trails. The Bullit is the closest you can get to owning both a downhill bike and a chairlift.
WHAT GOES UP, LOVES COMING DOWN
The Bullit takes a no-limits approach to ebikes. With DH-derived geometry, huge travel, and burly components, it thrives on challenging trails. The full carbon frame and hardware are so bulletproof that we offer a lifetime warranty.
WHEN GRAVITY CALLS
The biggest trails are often further away and higher up the mountain. The full-power Shimano motor, paired with a large 630 Wh battery, ensures the Bullit will get you to the drop-in
| Frame Size | Medium | Large | X-Large | XX-Large |
|---|---|---|---|---|
| Reach (mm) | 450 | 475 | 495 | 515 |
| Stack (mm) | 621 | 630 | 648 | 670.4 |
| Head tube angle | 64° | 64° | 64° | 64° |
| Seat Tube Length (mm) | 405 | 430 | 460 | 500 |
| Front Center (mm) | 789.4 | 818.8 | 847.5 | 878.5 |
| BB Height (mm) | 348 | 348 | 348 | 348 |
| BB Drop (mm) | 25.5/6.5 | 25.5/6.5 | 25.5/6.5 | 25.5/6.5 |
| Wheelbase (mm) | 1238.5 | 1267.9 | 1296.7 | 1327.7 |
| Rear Center (mm) | 449 | 449 | 449 | 449 |
| Head Tube Length (mm) | 100 | 110 | 130 | 155 |
| Top Tube Length (mm) | 591.3 | 619.2 | 644.9 | 672.1 |
| Seat Tube Angle | 77.2° | 77.1° | 77° | 76.8° |
| Standover Height (mm) | 748 | 747 | 745 | 745 |
| Frame Size | Rider Height (in) | Rider Height (cm) |
|---|---|---|
| Small | 5'1"-5'5" | 155cm-165cm |
| Medium | 5'5"-5'9" | 165cm-175cm |
| Large | 5'9"-6'1" | 175cm-185cm |
| X-Large | 6'1"-6'4" | 185cm-193cm |
| XX-Large | 6'4"-6'7" | 193cm-200cm |
Specs
| Frame | Carbon CC MX 170mm Travel, 4-Bar |
|---|---|
| Fork | Fox 38 Float Factory, Grip X2, 170mm |
| Rear Shock | FOX Float X2 Factory, 205x65 |
| Wheels |
Front: Reserve 30|HD Rear: Reserve 30|DH |
| Hubs |
Front: DT Swiss 350, 15x110, 6-Bolt, 28h Rear: DT Swiss 350 DEG, 12x148x XD, 6-Bolt, 72t, 32h |
| Tires |
Front: Maxxis Minion DHRII 27.5x2.5, 3C MaxxTerra, DoubleDown Rear: Maxxis Assegai 29""x2.5"", 3C, MaxxGrip, Double Down |
| Crankset | SRAM X0 Eagle Cranks, 155mm |
| Shifters | SRAM AXS Pod Controller Rocker Paddle |
| Rear Derailleur | SRAM X0 Eagle AXS T-Type, 12spd |
| Cassette/Freewheel | SRAM X0 Eagle T-Type, 10-52t |
| Chain | SRAM X0 Eagle T-Type, Flattop, 12spd |
| Brakes | SRAM Maven Silver |
| Rotors |
Front: SRAM HS2 200mm Rear: SRAM HS2 200mm |
| Handlebars | Santa Cruz 35 Carbon Bar, 800mm |
| Tape/Grips | Santa Cruz Bicycles House Grips |
| Stem | OneUp Stem, 42mm |
| Headset | Cane Creek 50 IS Integrated Headset |
| Seatpost | OneUp Dropper Post, 31.6 |
| Saddle | WTB Silverado Medium Fusion, CroMo SL |
| Pedals | Sold Separately |
| Motor | Bosch Performance CX BDU38 |
| Battery | Bosch PowerTube Battery 600Wh |
| Charger | Bosch PowerTube Battery 600Wh |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Gloss Black / Small / 29-inch front / 27.5-inch rear | 192219502328 | 58-26306-351-2-882-232702-01 | |
| Gloss Black / Medium / 29-inch front / 27.5-inch rear | 192219502403 | 58-26306-351-3-882-232702-01 | |
| Gloss Black / Large / 29-inch front / 27.5-inch rear | 192219502489 | 58-26306-351-4-882-232702-01 | |
| Gloss Black / X-Large / 29-inch front / 27.5-inch rear | 192219502564 | 58-26306-351-5-882-232702-01 | |
| Gloss Black / XX-Large / 29-inch front / 27.5-inch rear | 192219502649 | 58-26306-351-6-882-232702-01 | |
| Matte Teal Sparkle / Small / 29-inch front / 27.5-inch rear | 192219502366 | 58-26306-351-2-883-232702-01 | |
| Matte Teal Sparkle / Medium / 29-inch front / 27.5-inch rear | 192219502441 | 58-26306-351-3-883-232702-01 | 210000120076 |
| Matte Teal Sparkle / Large / 29-inch front / 27.5-inch rear | 192219502526 | 58-26306-351-4-883-232702-01 | 210000120183 |
| Matte Teal Sparkle / X-Large / 29-inch front / 27.5-inch rear | 192219502601 | 58-26306-351-5-883-232702-01 | |
| Matte Teal Sparkle / XX-Large / 29-inch front / 27.5-inch rear | 192219502687 | 58-26306-351-6-883-232702-01 |
